Condition: New
Warranty: 5/1 Years
Microscope
Luxeo 6i
Auxiliary Objectives (Optional)1.0x Apochromat standard
Optional objectives: Achromats: 0.32x, 0.50x, 0.63x, 0.80x, 1.0x Plan Apochromat: 1.25x
Magnification
6:1 Zoom Ratio
Camera Adapters
C-mount adapters 0.3x, 0.5x, 0.7x; DSLR adapters for Canon, Sony and Nikon, and iPhone
Optical System
Galilean
Eyepiece
WF 10x/22mm with foldable eye guards, ±8mm diopter adjustment
Optional: 12.5x, 16X and 20X eyepieces
Eye Guards
Rubber, Foldable
Light Quality
Homogeneous daylight (6500ºK), free of UV and IR emissions
Power Supply
Universal 100V - 240V, 50/60Hz integrated power supply with voltage flux stabilizer
Illumination Control
Incident Light: Coaxial light with intensity control
Dual goose neck for extra illumination
Transmitted Light: Two options - detachable BF/DF (Bright field/Dark field) base; preconfigured mirror base for transparent objects All intensity controlled through membrane switch on microscope pod
Viewing Body
Binocular 20°, 49-78mm IPD Optional: 0-210° tiltable ergo head
LED Life
Up to 25,000 hours
Magnification Range
8x to 50x Continuous
Object Field Diameter
4.4 to 27.50mm
Diopter Correction
+ / - 5 Diopters
Working Distance
110mm

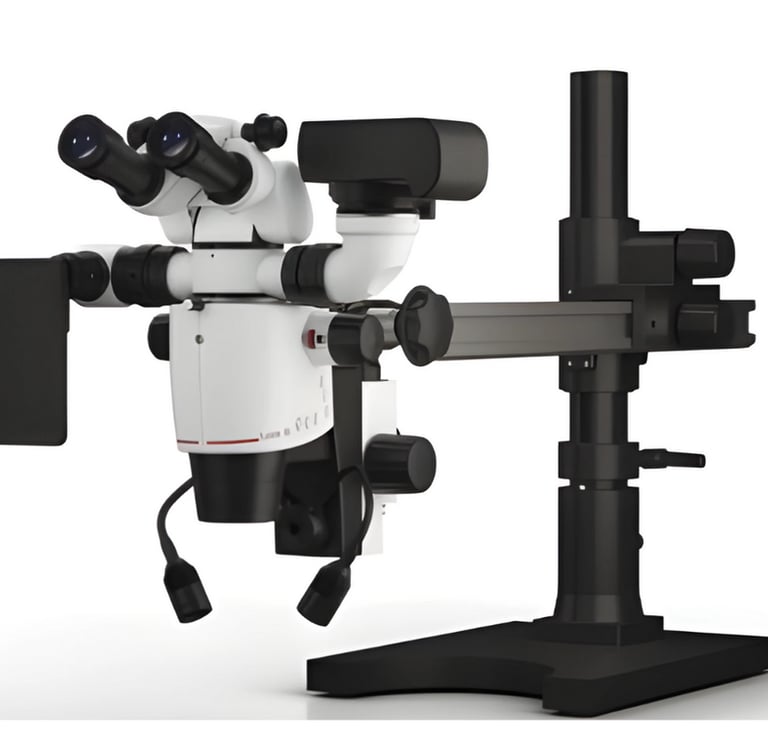

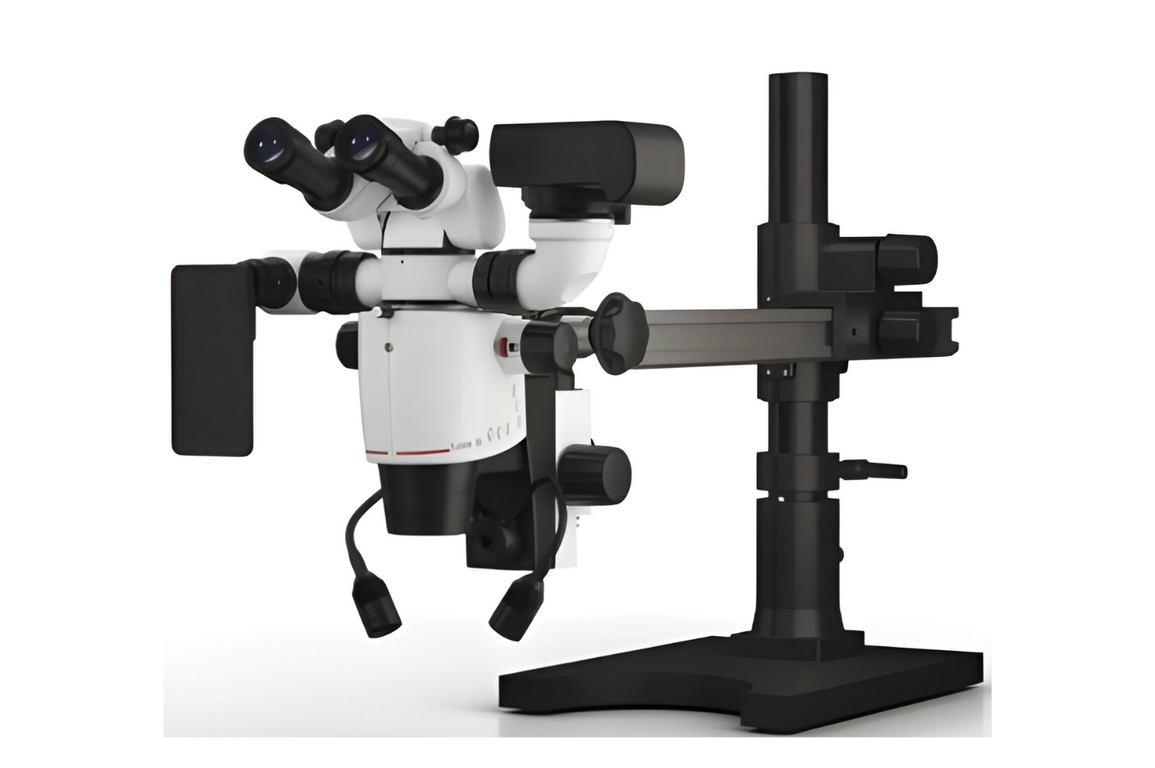

Luxeo 6i delivers state-of-art engineering and design to users most concerned with performance
and value. From a fluid zoom control (6:1), bright and efficient co-axial LED illumination with
ergonomically placed light controls, and a crisp apochromatic galiliean optical system
delivering the highest fidelity image resolution, our team has met the call to deliver the most
attractive and valuable stereo microscope for industrial and medical purposes. An
optional tilting viewing body makes the system more ergonomic, and a range of stand types promise
