Condition: New

Warranty: 5/1 Years

Accessories (Optional)

o Pointers & Micrometer Reticules

o Dual Viewing Bridge

o Auxiliary Objectives and Eyepieces

o Cord Hanger Kit

o Digital Cameras and Adapters

Microscope

LX POL

  • Eyepiece

    Focusable Wide Field eyepiece 10x/20mm with foldable eye guard. With factory installed fixed-verticality crosshair in one eyepiece

  • Focusing

    Feather touch attrition-free coaxial coarse and fine focus adjustment with auto tension adjust meant for longer life and responsive movement. Weighted fine focus.

  • Nosepiece

    Reverse angle quadruple nosepiece (ball bearing type) with click stops, featuring independently centerable objectives

  • Objective

    SF series strain free infinity corrected DIN Plan Achromatic objectives: 4x(WD30.0mm), 10x(WD 7.00mm), 40x(WD 0.65 mm); Optional 100x(WD0.23mm)spring loaded, oil objective

  • Electronics

    Universal input 100V - 240V AC, 50/60Hz. Built-in voltage sensing power supply.

  • Stand

    Single mold sturdy stand with anti rust materials. Extended base for better stability

  • Analyzer

    Adjustable analyzer with centration screws. Focusable Bertand lens. Slider slots and spare slider holders. Comes equipped with Lamda, 1/4 Lamda, and Quartz Wedge plates.

  • Circular Stage

    360° rotatable stage, 160mm with one degree increments and spring clips

  • Viewing BodySiedentopf Binocular or Trinocular head; 30° inclined; 360° rotatable; IPD 52-75mm

  • Polarizer

    Rotating polarizer with orientation markers at every 90°

  • Condenser

    0.9 NA centerable strain free conderser

  • Illumination

    Halogen 6v-30W with one installed bulb, Koehler field diaphragm. LED illumination optional.

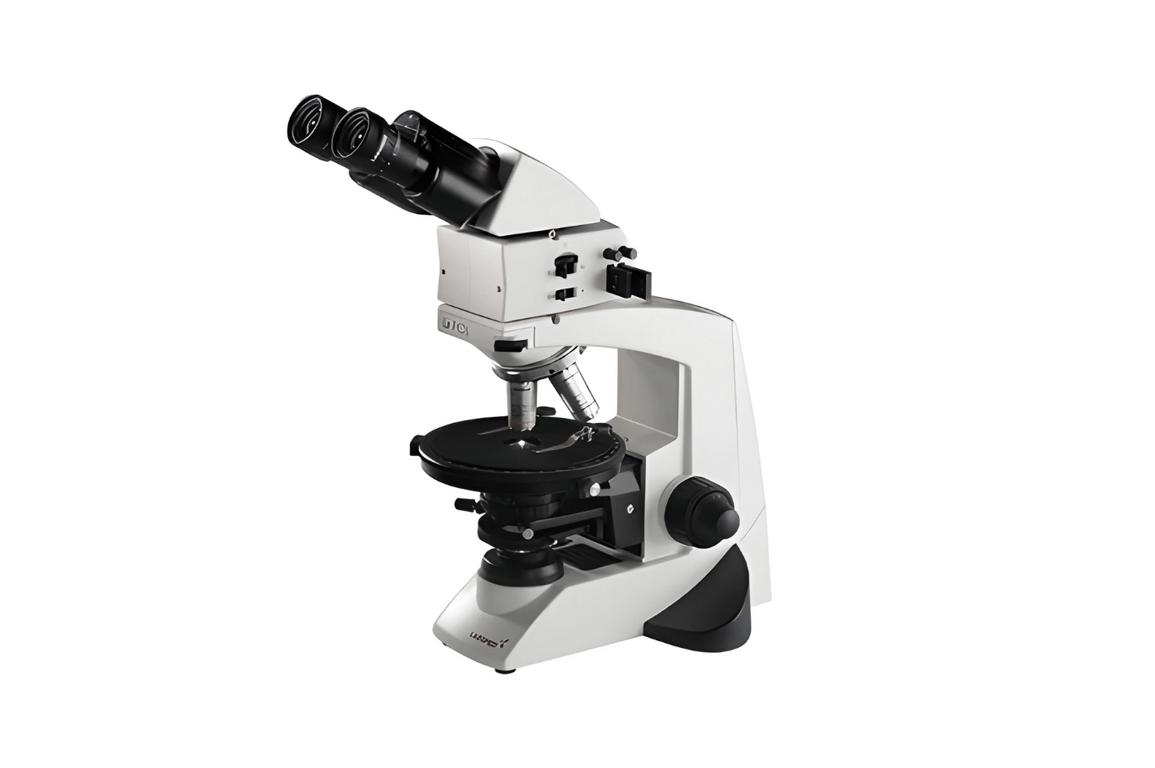

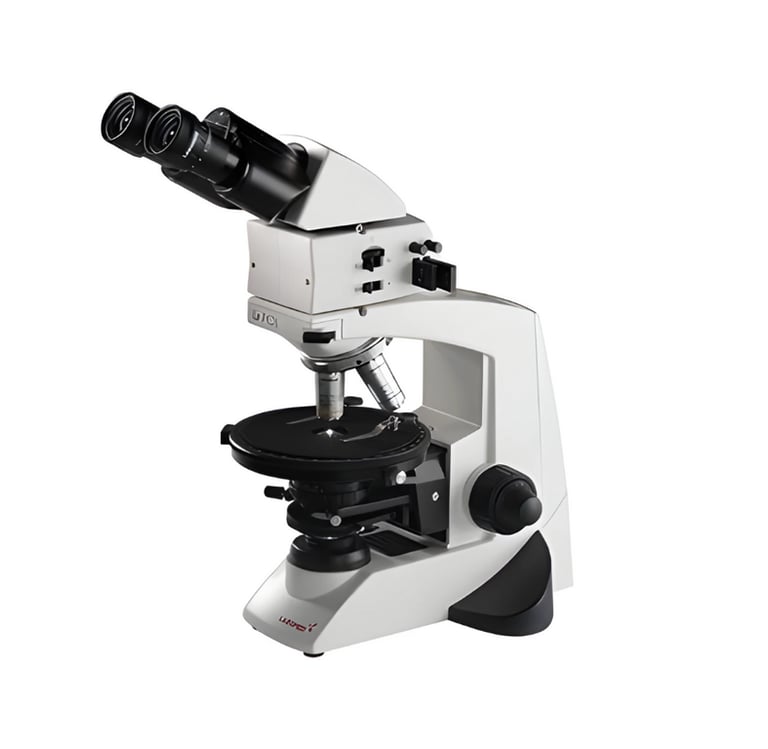

The highly streamlined Lx POL polarizing microscope delivers reliability and comfort through

precision opto-mechanical engineering. Tight design tolerances with the SF (strain-free) optical

series produce near-zero optical impurity interference. Careful attention to the sub-stage

polarized extinction disc and individually centerable objectives yield a highly controlled light path

with respect to stage orientation, and ultimately a sharp contrast image.
