Condition: New

Warranty: 5/1 Years

Microscope

WS7

Description

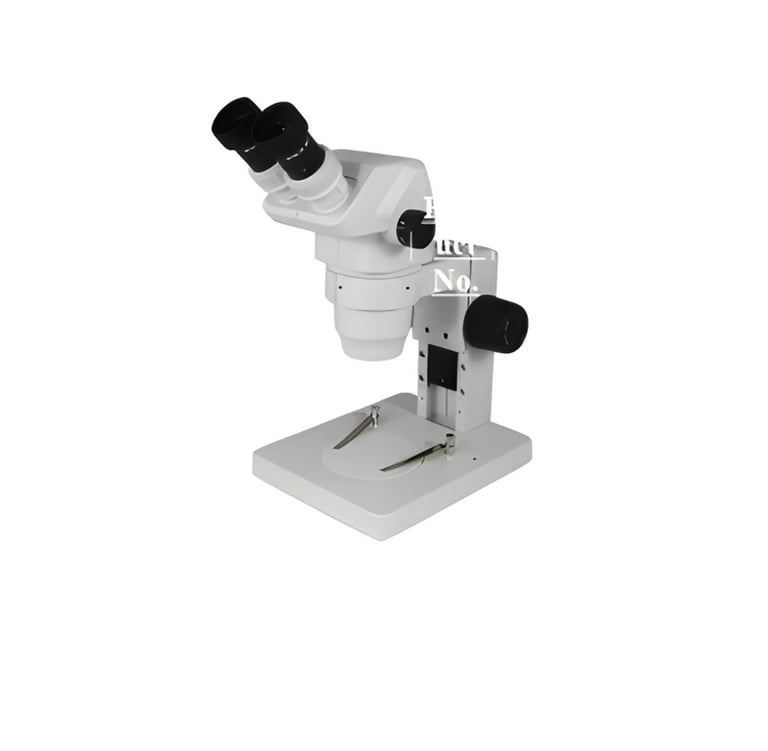

● Zoom stereo microscope

● High definition 3D images and large depth of field

● Diopter adjustment for different eye widths

● Compact design

The brand new optics design adopted in the SZ Zoom Stereo Microscope

facilitates the microscope to deliver excellent flatness, good contrast and

high definition images in the wide field, especially on the periphery of Field of View.

The combination of compact design, long working distance and variety of functions enables SZ Zoom Stereo Microscope to be applied in precision of

requirements, such as in semi-conductor and other scientific fields. The

photographing sytem of SZ Zoom Stereo Microscope can be equipped with

CCD cameras, digital cameras and DSLR for processing micro-image

acquisition and storage, and can be widely used in teaching, scientific

research, electronic inspection and test and assembly industry.

Zoom Range of Zoom Body: 0.67X-4.5X

Zoom Ratio: 1: 6.7

Magnification: 2X-

270X

Field of View: 1mm-

109.5mm

Working Distance:

26mm-287mm

Interpupillary

Adjustment: 52mm-

75mm

Eyetube Inclination:

45° and 60° 20°

rotatable microscope

head

Eyepiece Diopter

Correction: ±5 Diopter

Working Distance of

Built-in Objective

Lens: 100mm

Optional Eyepieces:

10X, 15X, 20X, 25X

and 30X

Optional Auxiliary

Lenses: 0.3X, 0.5X,

0.75X, 1.5X and 2.0X

Optional Video

Couplers: 0.5X and 1X

(For Trinocular Body)
