Stereo

Condition: New

Warranty: 5/1 Years

Quick Overview

Infinite. Total magnification: 40-1000X. 10X Adjustable Eyepiece. 4X 10X 20X 40X 100X Infinity Plan Semi Apochromatic Fluorescence Objective. Eye Tube Angle: 0-35. XY Stage Travel Distance: 78 X 32mm Illumination Light LED Dual illuminated Light LED Excitation Filter Type: B G U V. Input Voltage: AC 100-240v 50/60HZ

Microscopes

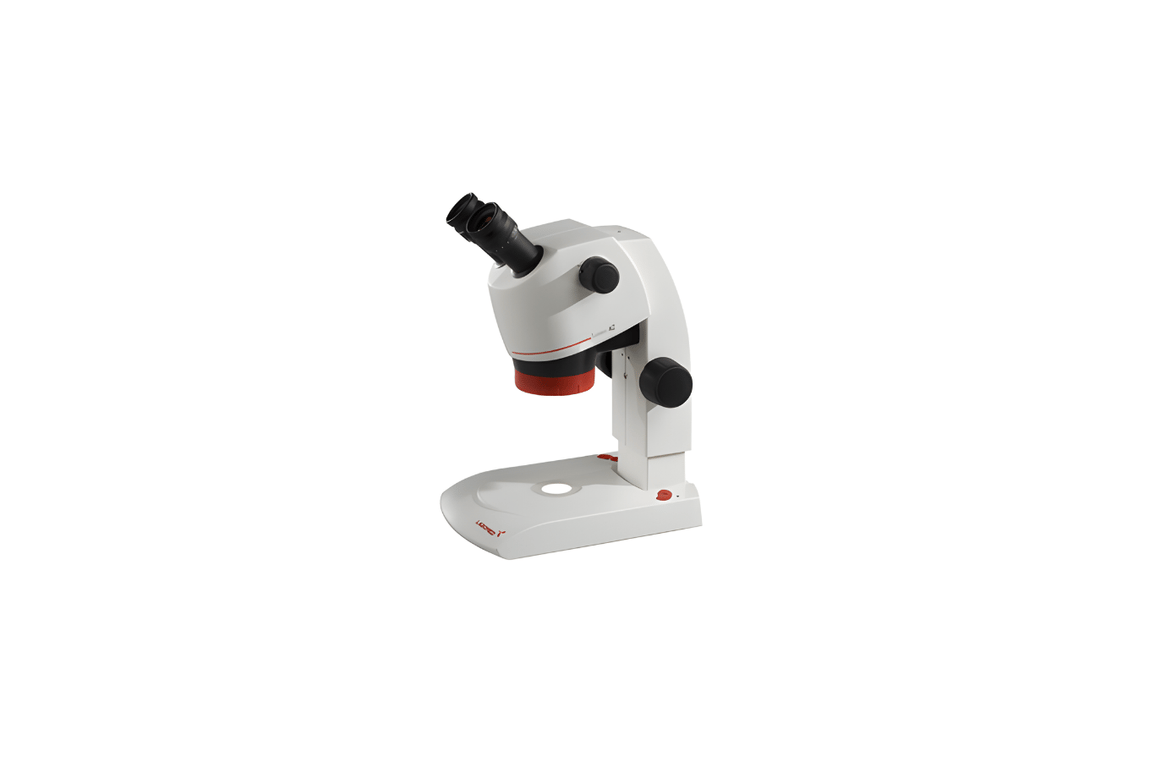

Luxeo 4Z

  • Optical System

    Greenough

  • Illumination Control

    Incident / Transmitted (Oblique Settings) / Combined illumination control buttons with rheostat dial for light intensity control

  • Incident Light

    + / - 30º Oblique illumination and variable intensity control dial

  • Magnification

    4.4:1 Zoom Ratio

  • Transmitted Light

    3-LED super bright glow screen, low heat emission

  • Power Supply

    Universal 100V - 240V, 50/60Hz integrated power supply with voltage flux stabilizer

  • Eyepiece

    Widefield 10x/18mm (interchangeable)

  • Object Field Diameter

    6.6 to 28.5 mm

  • Diopter Correction

    + / - 5 diopters

  • Light Quality

    Homogeneous daylight (6500ºK), free of UV and IR emmissions

  • Magnification Range

    8x to 35x Continuous

  • LED Life

    Up to 25,000 hours

  • Viewing Body

    Integrated Binocular, 45º, 52-74mm diopter adjustment

  • Working Distance

    100mm

  • Eye Guards

    Rubber, Retractable

  • Incident Light Method

    Maximum intensity (10 LEDs), front angled incident light (5 LEDs), rear angled incident light (5 LEDs)

  • Camera Adapters

    C-mount adapters 0.3x, 0.5x, 0.7x

  • Illumination

    LED Transmitted & Incident

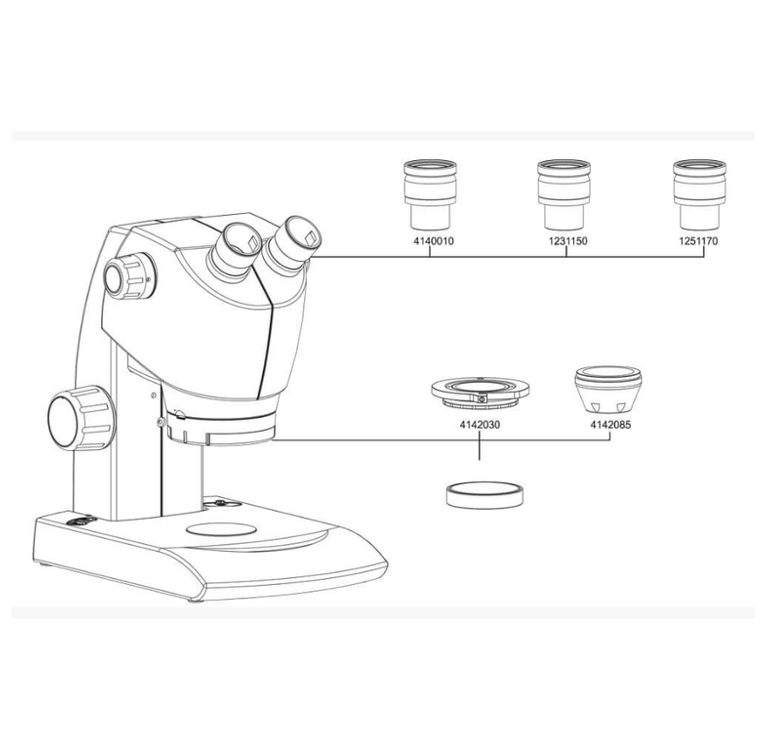

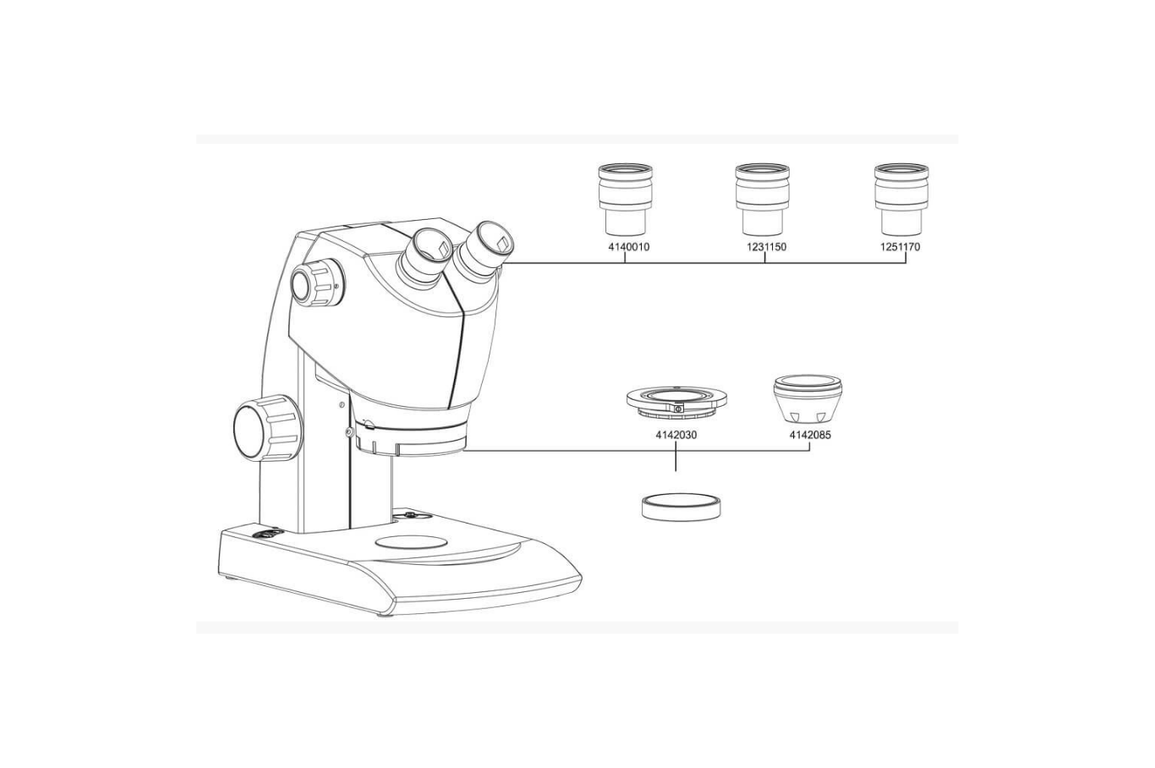

  • Accessories (Optional)
    • Pointers & Micrometer Reticules

    • Auxiliary Eyepieces

    • Polarizing Kit

    • Auxiliary Objectives

    • Soft Carrying Case


The Luxeo 4Z reflects high performance engineering in every detail, demonstrating yet again, an unwavering focus on delivering superb value. With a super bright and white light emitting diode (LED) illumination system, superb optics, and a single-cast durable construction, the Luxeo 4Z addresses the needs of modern biology programs as well as a host of quality control and routine inspection applications.
