Stereo

Condition: New

Warranty: 5/1 Years

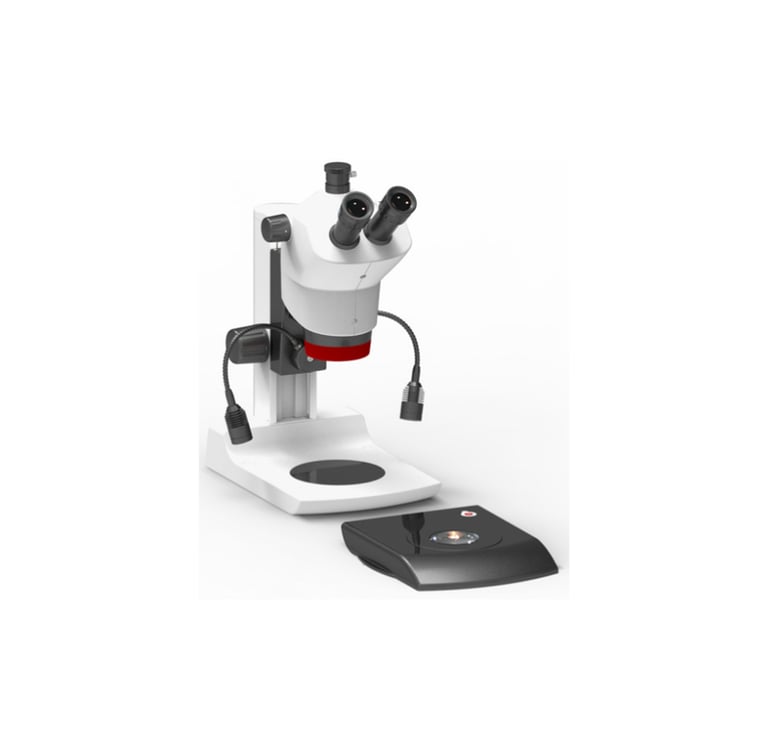

Luxeo 6Z

The Luxeo 6Z is the first in a new series of stereo microscopes designed to bring greater flexibility and performance to work stations. With total integration of gooseneck and axial illumination, versatility in transmitted illumination features, and highly ergonomic stand options to choose from, the Luxeo 6Z will delight in every environment.

  • Optical System

    Greenough

  • Eye Guards

    Rubber, Foldable

  • Illumination Control

    LED ring light with + / - 30º oblique illumination settings with intensity control.
    Front Angle Arc illumination with cluster of 11 LEDs
    Rear Angled Arc illumination with cluster of 12 LEDs
    Dual LED goose neck with intensity control

    All intensity controlled through membrane switch on microscope pod

  • Object Field Diameter

    4.4 to 27.50mm

  • Auxiliary Objectives (Optional)

    0.5x, 1.0x, 2.0x

  • LED Life

    Up to 25,000 hours

  • Magnification

    6:1 Zoom Ratio

  • Eyepiece

    Widefield 10x/22mm (interchangeable)

  • Working Distance

    110mm

  • Magnification Range

    8x to 50x Continuous

  • Light Quality

    Homogeneous daylight (6500ºK), free of UV and IR emissions

  • Power Supply

    Universal 100V - 240V, 50/60Hz integrated power supply with voltage flux stabilizer

  • Diopter Correction

    + / - 5 diopters

  • Transmitted Light

    Detachable BF/DF(Bright field/Dark field)
    Optional: mirror base for transparent objects

  • Viewing Body

    Integrated Binocular, 45º, 50-75mm IPD

  • Camera Adapters

    C-mount adapters 0.3x, 0.5x, 0.7x

  • Incident Light

    + / - 30º Oblique illumination and variable intensity control through membrane switch

  • Incident Light Method

    Maximum intensity (23 LEDs), front angled incident light (11 LEDs), rear angled incident light (12 LEDs)

  • Illumination

    LED Transmitted & Incident

  • Accessories (Optional)
    • Pointers & Micrometer Reticules

    • Auxiliary Eyepieces

    • Polarizing Kit

    • Auxiliary Objectives

    • Soft Carrying Case
