Upright
Condition: New
Warranty: 5/1 Years
Designed for scaleability, the Lx 400 can take on a broad range of applications and curriculum requirements. Reflecting innovations in optical and illumination design as well as mechanical breakthroughs, the Lx 400 delivers unparalleled performance to price value to an expanding list of delighted users.

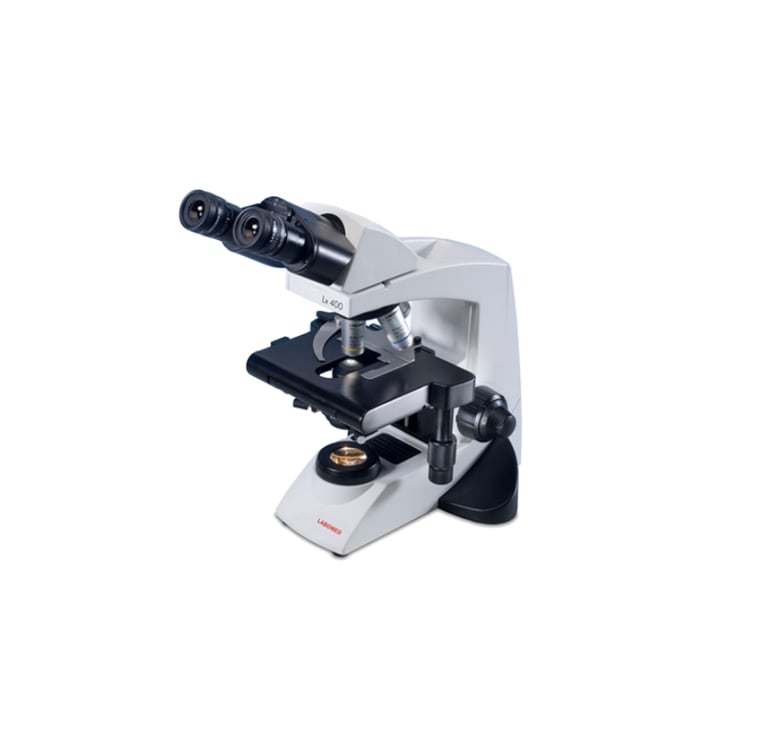

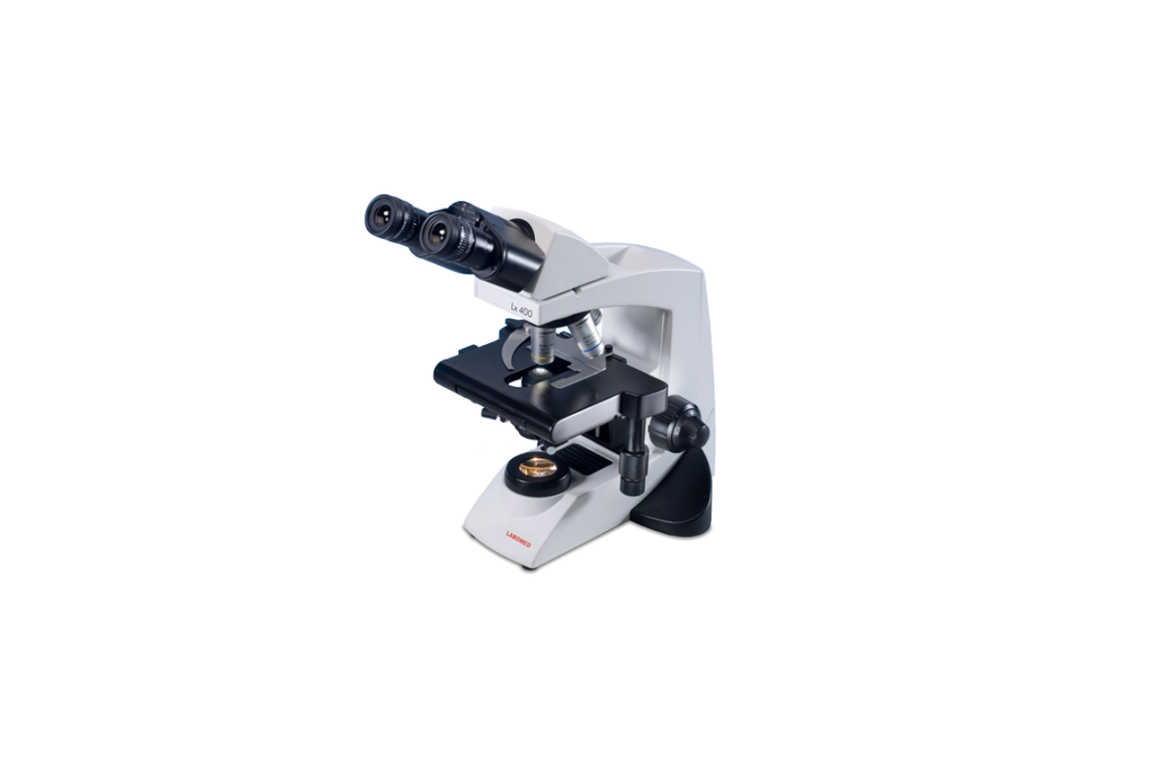

LX 400
Microscope
![](https://assets.zyrosite.com/cdn-cgi/image/format=auto,w=730,h=487,fit=crop,trim=142.88372093023256;216.12875536480686;142.88372093023256;216.12875536480686/m7VpvpoK3aCye0Ke/landing-page-33-m2W42xo36Osj7JVR.png)
![](https://assets.zyrosite.com/cdn-cgi/image/format=auto,w=328,h=320,fit=crop,trim=143.33988212180748;330.6470588235294;143.33988212180748;330.6470588235294/m7VpvpoK3aCye0Ke/landing-page-33-m2W42xo36Osj7JVR.png)
Objective
RP series infinity corrected DIN Plan Achromatic objectives 4x, 10x, 40x (spring loaded), 100x (spring loaded, oil), antifungal
Focusing
Coaxial coarse and fine focusing on ball drive system for smooth operation
Nosepiece
Reverse angle quadruple nosepiece (Ball bearing type) with click stops and rubber grip
Stand
Single mold aluminum stand with hand rests for enhanced comfort and stability
Eyepiece
Widefield 10x/20mm focussable eyepieces with foldable rubber eye guards, antifungal
Illumination
Halogen 6V-20W/30W or LED (built in rechargeable battery) illumination with variable illumination control. Up to 2,000 hours of Halogen (20W) lamp life and 100,000 hours of LED life
Viewing Body
Siedentopf Binocular or Trinocular head, 30° inclined, 360° rotatable, Interpupillary distance 48 - 75mm
Condenser
Sub stage Abbe condenser NA 1.25 with aspheric lens. Iris diaphragm with blue daylight filter. Rack and pinion movements on stainless steel guides
Electronics
Universal input 100V - 240V AC, 50/60Hz. Built-in voltage stabilizer Dimensions (mm) Labomed Lx 400 Laboratory Microscope Line Drawing
Mechanical Stage
Rackless X axis, double plate stage size 200 x 160mm, X/Y travel range 78mm x 54mm. Low drive right hand movement controls. Hard coated surface for scratch resistance. Double specimen holder clip

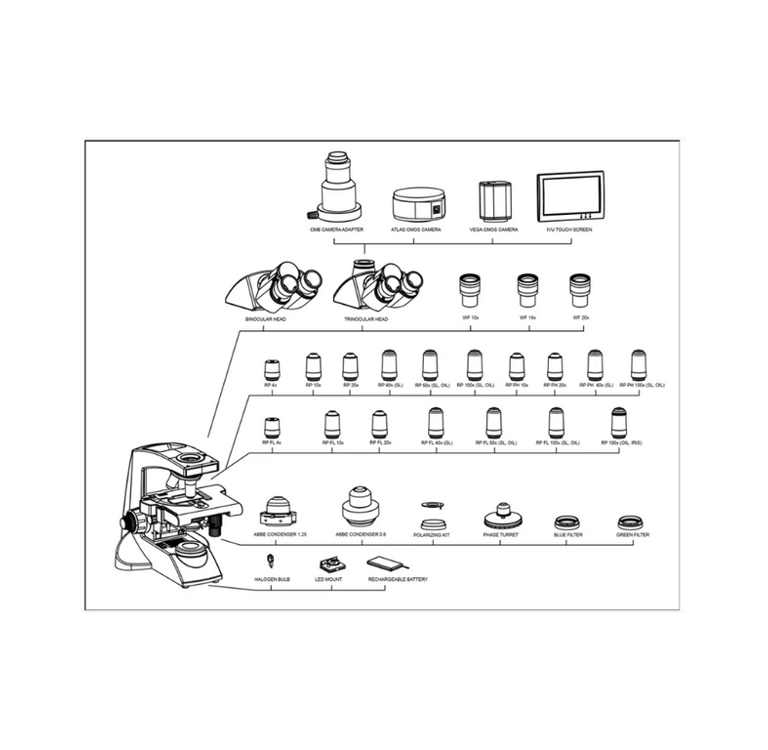

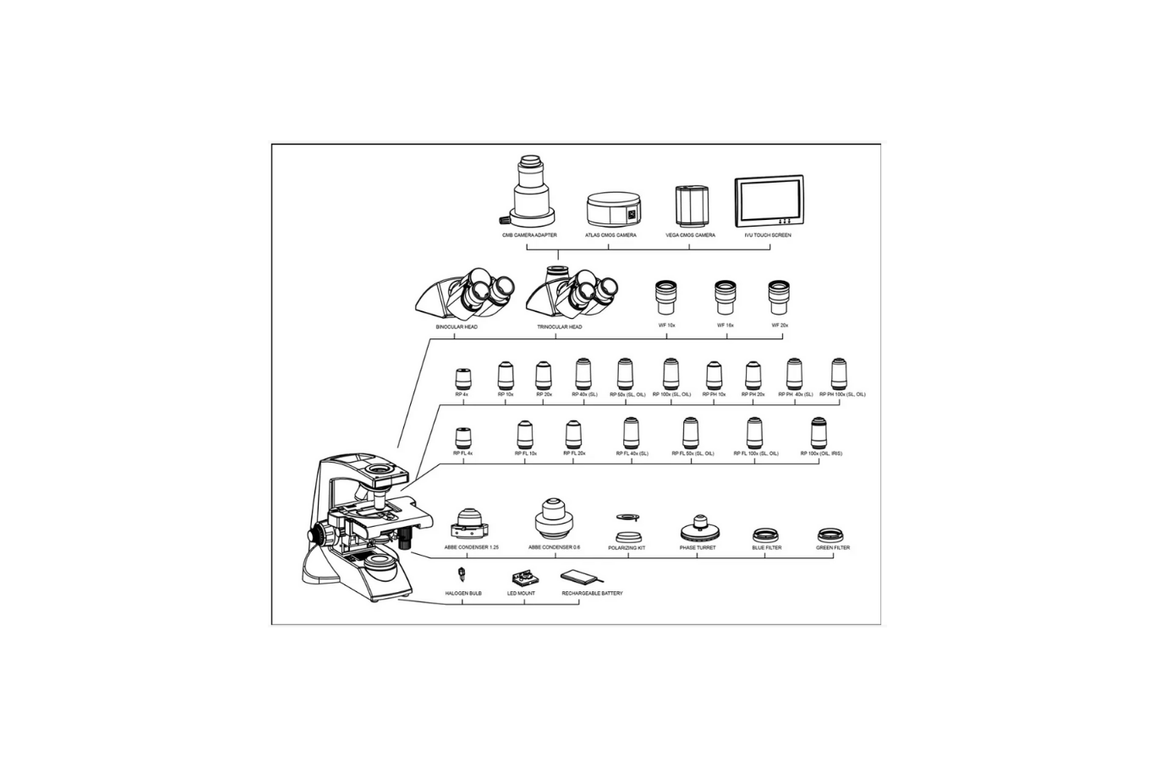

Accessories (Optional)
Pointers & Micrometer Reticules
Phase (Simple & Zernike), Polarizing, Fluorescence and Dark Field Kits
Dual Viewing Bridge
Quintuple Position Viewing Bridge
Auxiliary Objectives and Eyepieces
Cord Hanger Kit
Digital Cameras and Adapters
Kohler Kit
Soft Carrying Case
