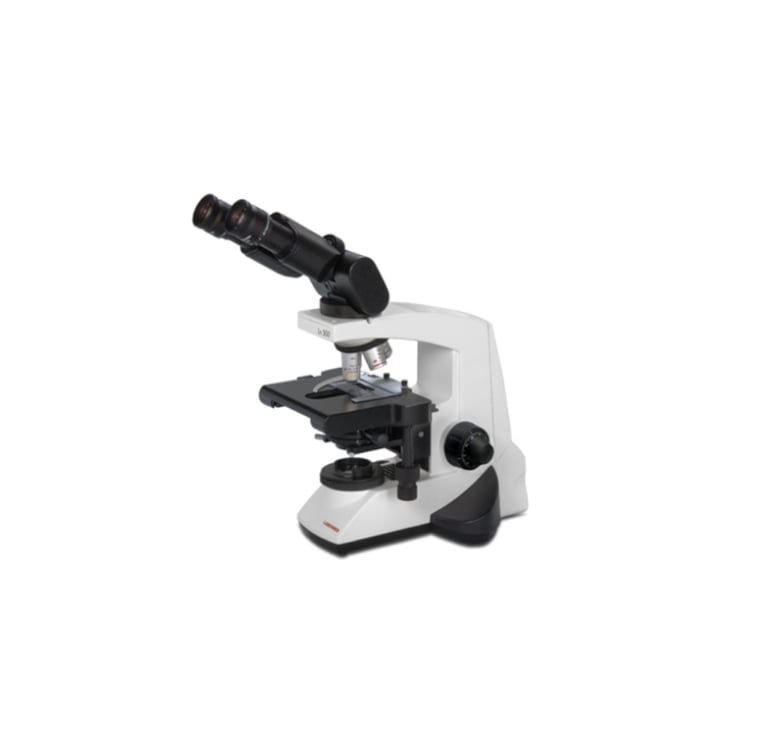

The Lx 500 clinical microscope is the outcome of world-class technologies and design innovations. Highly modular and accessory friendly, the Lx 500 is a versatile and fully extendable clinical microscope that boasts graceful symmetry and performance thanks to its ergonomic and optical features.

Condition: New

Warranty: 5/1 Years

Upright

LX 500

Microscope

  • Stand

    Single mold sturdy stand with anti rust materials. Extended base for better stability.

  • Nosepiece

    Reverse angle quintuple nosepiece (Ball bearing type) with click stops and rubber grip

  • Objective

    RP2 series Infinity Corrected DIN Plan Achromatic objectives 4x, 10x, 40x (spring loaded), 100x (spring loaded, oil), antifungal coated

  • Focusing

    Co-axial coarse and fine focusing on gear systems for smooth operation. Fine adjustment 0.3mm/rotation

  • Mechanical Stage

    Rackless X-axis Ceramic double plate stage, size 200 x 160mm, X/Ytravel range 76mm x 50mm. Double specimen holder

  • Condenser

    Flip-top sub stage Abbe condenser NA 1.25 with aspheric lens. Iris diaphragm with blue day light filter. Rack and pinion movements on stainless steel guides

  • Viewing Body

    Binocular, Trinocular 30° and Ergonomic Binocular 0° - 25° inclinable, 360° rotatable, Inter pupillary distance 47 - 75mm with height adjustment

  • Eyepiece

    Focusable 10x/22mm widefield eyepieces with foldable eyeguards, antifungal coated

  • Electronics

    Universal input 100V - 240V AC, 50/60 Hz. Built-in voltage stabilizer

  • Illumination

    True Köhler illumination with halogen 6V-30W lamp with variable illumination control. LED option available.

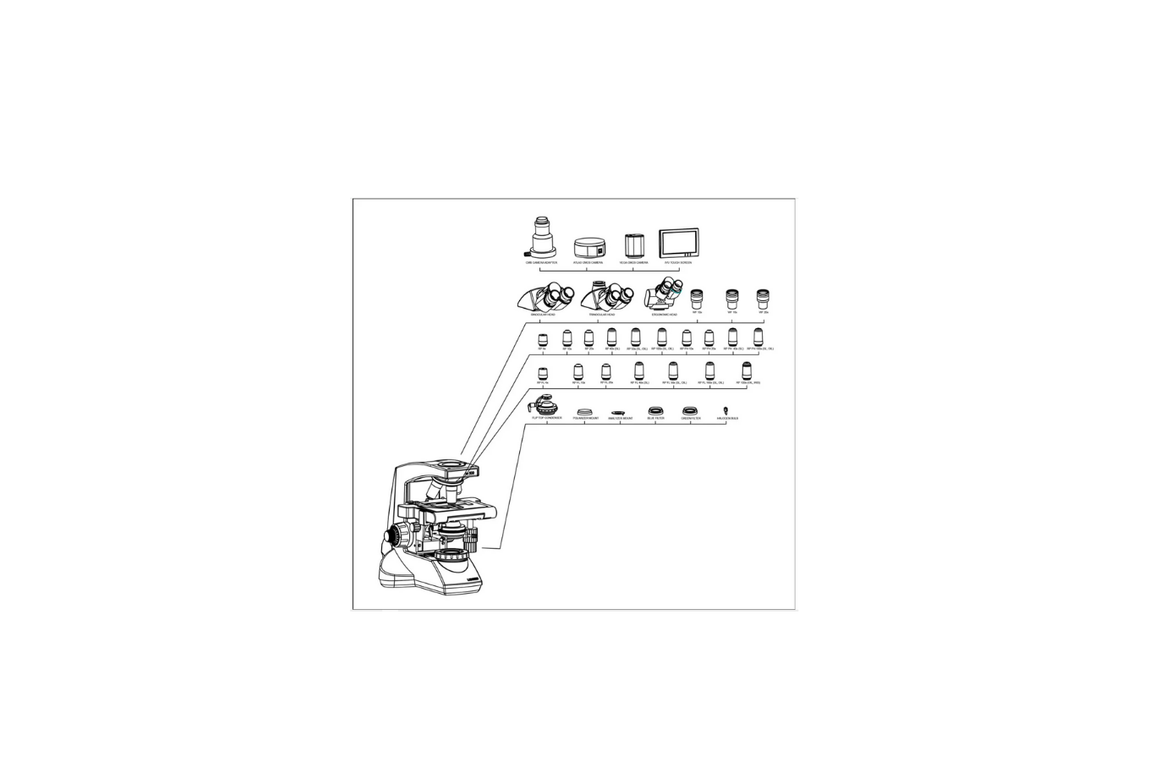

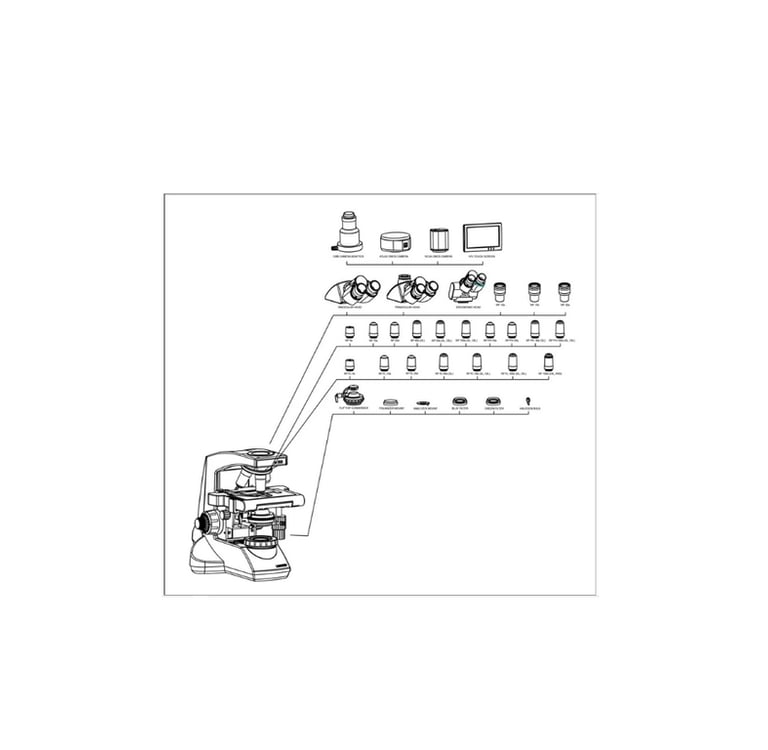

  • Accessories (Optional)
    • Pointers & Micrometer Reticules

    • Phase (Simple & Zernike), Polarizing, Fluorescence and Dark Field Kits

    • Dual Viewing Bridge

    • Auxiliary Objectives and Eyepieces

    • Cord Hanger Kit

    • Digital Cameras and Adapters

    • Soft Carrying Case
