Inverted
Condition: New
Warranty: 5/1 Years
Cell culture, In Vitro Fertilization (IVF), and fluorescence stains are viewed in high fidelity with the TCM 400. A host of optional accessories make the system modular and versatile. High-performance optics configured in a durable, compact footprint make the TCM 400 inverted microscope ideal for clinical needs.
TCM400
Microscope
Illumination
Transmitted Illumination system 6v30w Halogen with intensity control. Up to 500 hours of Halogen lamp life.
Viewing Body
Binocular, Trinocular 30° and Ergonomic Tiltable Binocular tube (0°-25°), IPD 52-75mm
Focusing
Coaxial coarse and fine focusing mechanism. Fine focus graduation 2.0μm

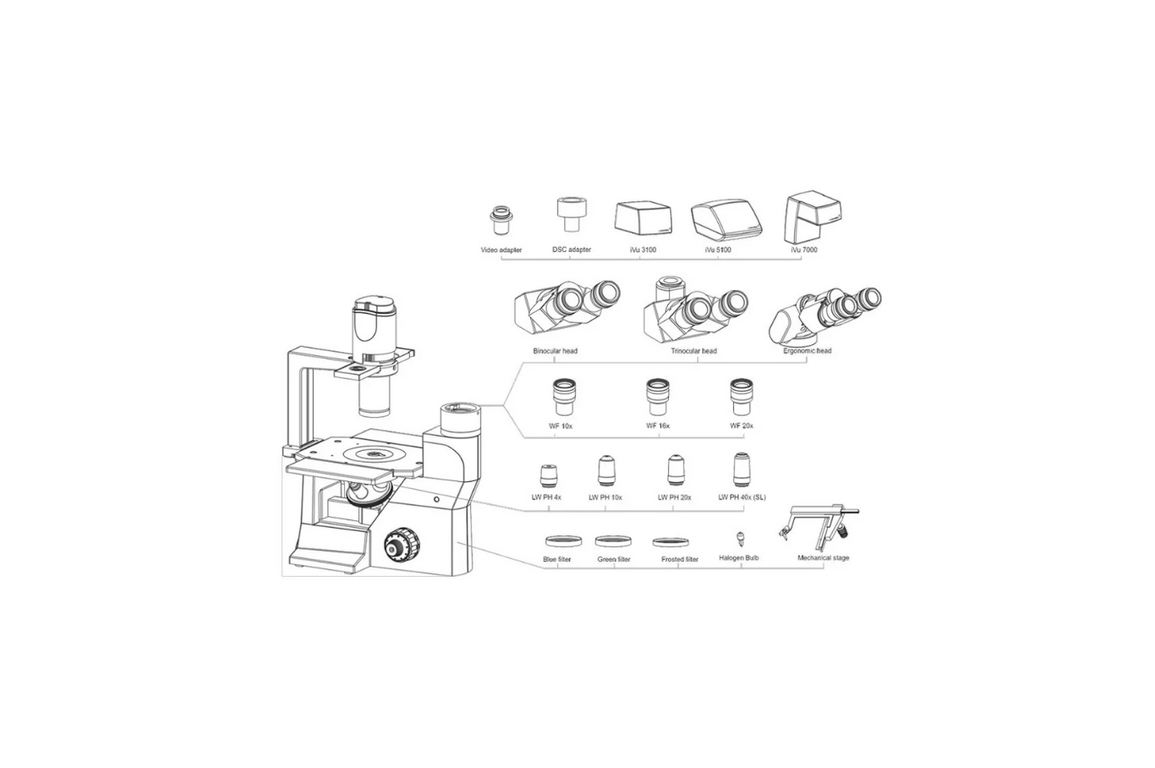

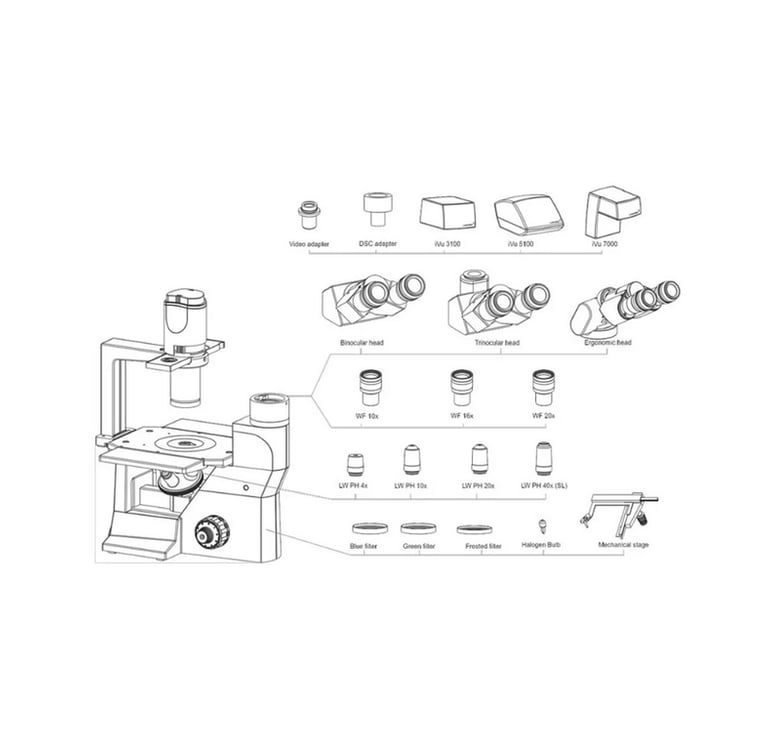

Optional Accessories
Pointers & Micrometer Reticules
Phase and Fluorescence Kits
Auxiliary Objectives and Eyepieces
Digital Cameras and Adapters
Soft Carrying Case
Mechanical Stage
Fixed plain stage 160mm x 240mm
Stand
Ergonomically designed sturdy stand (aluminum die-cast)
Condenser
Long working distance Condenser NA 0.30, suitable for Phase contrast/BF with Phase contrast slider and telescope, Green and Blue filters. Specimen holders include 35mm Petri dish holder and two dish/sample holders (only with optional mechanical stage)
Electronics
Universal power supply (110V-240V) with built-in voltage stabilizer
Eyepiece
Widefield 10x/22mm eyepieces with rubber eyeguards, antifungal coatings
Nosepiece
Quadruple reverse angle turret (Ball bearing type) with rubber grip
Objective
LW series Long working distance DIN Phase Plan Achromatic objectives 4x, 10x and 20x, antifungal coatings
